ZyXEL P-660W Modem-Ruter The ZyXEL P-660W series is an affordable

ZyXEL P-660W Modem-Ruter
The ZyXEL P-660W series is an affordable all-in-one router compatible with high-speed ADSL, ADSL2 and ADSL2+ interfaces over existing copper lines. With speeds up to 12Mbps (ADSL2) and 24Mbps (ADSL2+), the P-660W series offers higher data transfer rates and better bandwidth than traditional ADSL gateways. It also supports RE ADSL (Reach-Extended ADSL) for higher speed and longer distances. With its outstanding performance and high level of compatibility, the P-660W series fully bridges the gap between today's communication needs and the converged services of the future.

Robust Firewall Security
The ICSA certified ZyNOS operating system provides best-in-class firewall performance and robust security with the P-660W series. Built on Stateful Packet Inspection, DoS (Denial of Service) and DDoS features, the Firewall is the first line of defense against hackers, network intruders and other malicious threats.

Media Bandwidth Management The
P-660W series enables network administrators to allocate network resources and ensure Quality of Service (QoS). The MBM (Media Bandwidth Management) function prioritizes media services; It improves efficiency and effectiveness in current operations by tailoring a system to specific needs such as VoIP, video surveillance, video conferencing or MP3 applications.

WDS (Wireless Distribution System) Support
With this feature, the P660W-T1 model and the G-570S Access Point model can communicate wirelessly among themselves. In this way, the wireless coverage area can be expanded effortlessly.

Feature

Wireless Standard

IEEE 802.11g

ADSL Compliance

ITU 992.1 (G.dmt )
ITU 992.3 ADSL2 (G.dmt.bis)
ITU 992.5 ADSL2+
Reach-Extended ADSL (RE ADSL)
Annex L/M support

WLAN (Wireless Network) Features

IEEE 802.11n compatibility, backward compatible with 11b/g
Operating Frequency: 2.4 Ghz
65 /128 bit WEP data encryption
WPA/WPA2 (Wi-Fi Protected Access) Security
IEEE 802.1x, External Radius Server: EAP-MD5, TLS, TTLS support
Wireless Connection Timing Feature
Wi-Fi Multimedia (WMM)
WPS (Wi-Fi Protected Setup)

Firewall Security

Stateful Packet Inspection
DoS, DDoS Attack Prevention
Policy-based Access Control
Content Filtering
IP & General Packet Filtering
Real-Time Attack Alert and Logs

Routing Support

IEEE 802.1d Transparent Bridging
IP Routing: TCP, UDP, ICMP, ARP
RIPv1 and RIPv2
IP Multicast IGMP v1/v2
IP Policy Route

IP Management

SUA/Multi-NAT Internet Sharing
Multimedia Support
VPN (IPSec, PPTP) Passthrough
DHCP Server/Circuit/Client
DNS Proxy
Dynamic DNS
UPnP Support

Network Management

Web-based Configuration
Telnet Remote Management
Romfile with Firmware Upgrade FTP/TFTP for Support and Rollback
SNMP Support
Built-in Diagnostic Tool

WLAN Features To

54Mbps Up to 802.11g Compliance Speed
??Compatible with 802.11b
64/128/256 Bits WEP Encryption
Dynamic WEP Key
802.1x Port-based Authentication
WPA(Wi-Fi Protected Access),WPA2
WPA-PSK,TKIP
External RADIUS Server Support
MAC Address Filtering
Wireless communication with Access Points in the environment with WDS (Wireless Distribution System) support

Advanced Features

Zero Configuration
Traffic Redirect
Multimedia Service Routing Technology (MSRT)
Media Bandwidth Management (MBM)
Wi-Fi Multimedia (WMM) (P- 660HW-6x/ Dx)
Multimedia Auto Provisioner (MAP)
One Touch Intelligent Security Technology(OTIST)

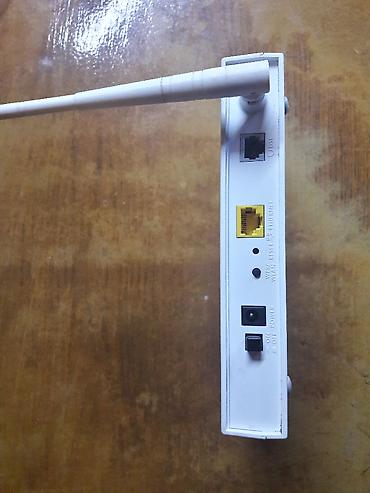

Hardware Specification

ADSL: One RJ-11 or RJ-45 Port
LAN: 1x 10/100M Auto MDI/MDIX Ethernet port
Reset Button
Status LED Indicator
12V DC for P-660HW-6x, 12V AC Power
Fixed Antenna (5 dBi) for P-660HW-Dx and P-660HW-Tx

Physical Specification

Dimensions: 180(W)x 128(D)x 36(H)mm
Weight: 325 g

Operating Environment

Temperature: 0°C ~ 50°C
Humidity: 20% ~ 95%
bez adaptera
Cena: 2.000 din
