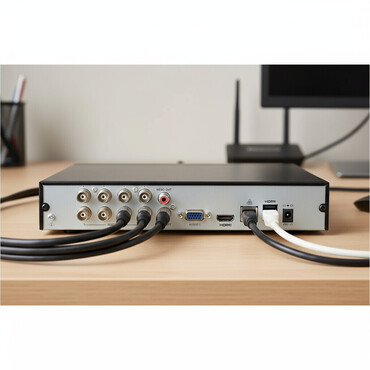

Uniarch UV-XVR104G2 snimac
📹💾
Model: Uniarch UV-XVR104G2 snimač
Video rekorder 5u1; Uniarch 4CH HDTVI / HDCVI / AHD / CVBS + 2 dodatna IP; Podržava 1 hard disk;
Specifikacije:
Video format HDTVI / HDCVI / AHD / CVBS / IP Video inputs 4CH BNC Hybrid configuration Up to 6 IP Channels (4Mpx) replacing all the BNC channels Video outputs 1 HDMI Full HD, 1 VGA Audio inputs 1 Channel RCA Audio outputs 1 Channel RCA Bidirectional audio Reusing the audio input/output Display resolution 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 Maximum IP recording resolution 4 Mpx Analog cameras supported TVI / AHD: 5MP@20FPS(CH1); 4MP@30FPS(CH1); 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720P@60FPS
CVI: 5MP@20FPS(CH1); 4MP@30FPS(CH1); 4MP@30FPS(CH1); 1080P@30FPS; 720P@30FPS
*For the correct live display, the combination of resolution and FPS
of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. Main Stream recording encoding TVI/CVI/AHD: 5MPLite@12fps; 4MPLite@15fps; 2MP@15FPS; 720P@30FPS Extra Stream recording encoding D1@12FPS; D1@15FPS; D1@30FPS Recording method Manual, programmed, motion detection Internal memory 1 HDD SATA 3.5" of up to 6TB (not included) External interface 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) Power DC 12V / 8W Dimensions / Weight 46 (H) x 260 (W) x 243 (Fo) mm / 1 kg📏
