LCD PSU SATA TESTER | LCD tester za testiranje ispravnosti

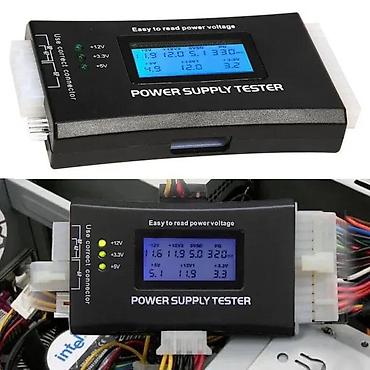

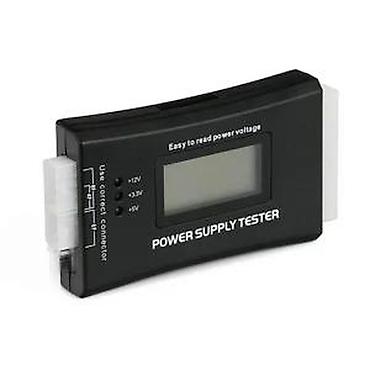

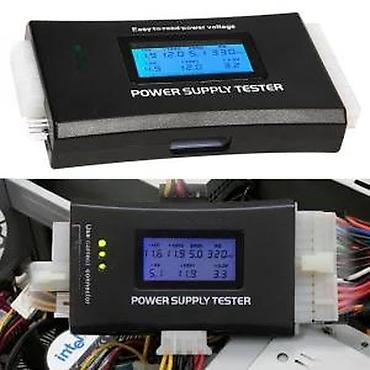

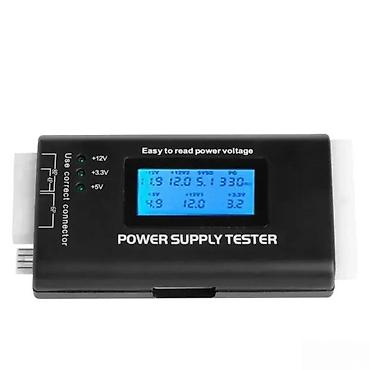

LCD PSU SATA TESTER | LCD tester za testiranje ispravnosti napajanja, SATA i ATA portova napajanja, kao i HD napajanja za grafičke kartice. Sa LCD displeja možete izčitati napone, odstupanja od normalnih vrednosti. Na ovaj način možete brzo i jeftino da proverite svako napajanje ATX napajanje, i na taj način uštedite vreme i novac sprečavajući nastajanje kvarova na periferijama kao i matičnim pločama, usled neadekvatnog napajanja. Tehnički detalji uređaja: The SD power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested. LCD`s indicate the status of voltage . The PC / SPS is suitable for the ambitious hobby user, as well as for a quick functional check in specialized trade. Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite. Power on the supply of power, will hear `DuDu` ring , if no flicker then the power supply output voltage is normal. If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a `DuDu` long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed. Voltage source : 20/24 pin ( ATX - connector ). Voltage test : +12V , -12V , +5V , -5V , +3.3V , +5V Stand by (SB) 12V power Good ( PG ). Connectors : Floppy, HDD , CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Expre)Šifra: F1013 ARTIKLE NE ŠALJEM VAN TERITORIJE REPUBLIKE SRBIJE! Kupac plaća artikal, pouzećem, zajedno sa poštarinom. Reklamacije primam, preko ovih poruka, sedam dana nakon prijema artikla. Nakon isteka ovog roka, ne primam reklamacije.
